Cold Drawn Rods
Home > Products > Cold Drawn Rods
    • Cold drawn rods are produced according to EN 12164 European Standard. They are high precision products suitable for efficient chip removal in free machining process.

      • Alloys
      • Production Ranges
      • Tolerances
      • Ordering Information
        • Download
        • Product Code
        • EN Symbol
        • EN No
        • ASTM
        • Ecobrass
        • CuZn21Si3P
        • CW724R
        • C69300
        • S509
        • CuZn40
        • CW509L
        • C27450
        • S510
        • CuZn42
        • CW510L
        • C28500
        • S511
        • CuZn38As
        • CW511L
        • C27453
        • S603
        • CuZn36Pb3
        • CW603N
        • C36000
        • S614
        • CuZn39Pb3
        • CW614N
        • C38500
        • S617
        • CuZn40Pb2
        • CW617N
        • C38000
        • S602
        • CuZn36Pb2As
        • CW602N
        • C35330
        • S625
        • CuZn35Pb1,5AIAs
        • CW625N
        • -
        • S626
        • CuZn33Pb1,5AIAs
        • CW626N
        • -
        • S608
        • CuZn38Pb2
        • CW608N
        • -
        • S612
        • CuZn39Pb2
        • CW612N
        • C37700
        • S709
        • CuZn32Pb2AsFeSi
        • CW709R
        • -
        • S713
        • CuZn37Mn3AI2PbSi
        • CW713R
        • C67420
        • S509DW
        • CuZn40
        • CW509L
        • C27450
        • S511DW
        • CuZn38As
        • CW511L
        • C27453
        • S603DW
        • CuZn36Pb3
        • CW603N
        • C36000
        • S614DW
        • CuZn39Pb3
        • CW614N
        • C38500
        • S617DW
        • CuZn40Pb2
        • CW617N
        • C38000
        • S612DW
        • CuZn39Pb2
        • CW612N
        • C37700
        • S510DW
        • CuZn42
        • CW510L
        • C28500
        • (*) please contact us for other alloys.
      • Designation Cold Drawn Extruded Cold Drawn Polygons Extruded Polygons
        Standards Diameter (mm) Width Across-flats (mm)
        Product Code EN Symbol EN No ASTM Min Max Max Min Max Max
        S614 CuZn39Pb3 CW614N C38500 6 80 140 6 55 100
        S617 CuZn40Pb2 CW617N C38000 6 80 140 6 55 100
        S602 CuZn36Pb2As CW602N C35330 10 80 140 10 55 100
        S608 CuZn38Pb2 CW608N - 6 80 140 6 55 100
        S612 CuZn39Pb2 CW612N C37700 8 80 140 8 55 100
        S603 CuZn36Pb3 CW603N C36000 10 80 140 10 55 100
        Ecobrass
        CuZn21Si3P CW724R C69300 10 80 140 10 55 100
        S509 CuZn40 CuZn40 C27450 6 80 140 6 55 100
        S510 CuZn42 CW510L C28500 6 80 140 6 55 100
        S511 CuZn38As CW511L C27453 10 80 140 10 55 100
        S625 CuZn35Pb1,5AlAs CW625N - 10 80 140 10 55 100
        S626 CuZn33Pb1,5AlAs CW626N - 10 80 140 10 55 100
        S709 CuZn32Pb2AsFeSi CW709R - 8 80 140 8 55 100
        S713 CuZn37Mn3Al2PbSi CW713R C67420 8 80 140 8 55 100
        • Ordering information for cold drawn rods is defined according to  EN 12164 European Standart. This definition is as follows:

          • Naming
          • Rod
          • Standard
          • EN 12164
          • Material Designation
          • Alloy Symbol or Number,
            E.g. CuZn39Pb3 or CW614N
          • Materials to be used in Drinking Water
          • When specified as DW, production is carried out according to the restrictions on 4MS and UBA list
          • Material Condition Designation
          • The necessary mechanical properties if different than M,
            E.g. min Tensile strength 430 N/mm2 to R430
          • Cross-sectional Shape
          • E.g. RND for round, SQR for square, HEX for hexagonal, OCT for octagonal, RCT for rectangular (bar), PFL for profile
          • Nominal Cross-sectional Dimension
          • E.g. 30 for 30 mm
          • Tolerances
          • E.g. A, B or C
          • Corner Type
          • When necessary, E.g. SH - Sharp or RD - Rounded


          Rod for free machining purposes conforming to this standart, in material designated either CuZn40Pb2 or CW617N, for drinking water applications according to 4MS Common Composition List, in material condition R430, round cross-section, nomial diameter 30 mm, tolerance Class A, shall be designated as follows:



          The product designation provides a standardized pattern of designation of the main order information when combined with quantity, length / piece and weight tolerances. Additional order information may include; the test method, the type of packaging information and quality assurance certification.

      • Standard EN 12164
        Nominal Diameter and Width Across- flats Round Rod Hexagonal, Square Rods
        Over Up to and including Class A Class B
        5 6 0
        -0,05
        0
        -0,03
        0
        -0,08
        6 10 0
        -0,06
        0
        -0,036
        0
        -0,09
        10 13 0
        -0,07
        0
        -0,043
        0
        -0,11
        13 18 0
        -0,07
        0
        -0,043
        0
        -0,11
        18 20 0
        -0,08
        0
        -0,52
        0
        -0,013
        20 23 0
        -0,08
        0
        -0,52
        0
        -0,013
        23 26 0
        -0,08
        0
        -0,52
        0
        -0,013
        26 30 0
        -0,08
        0
        -0,52
        0
        -0,013
        30 50 0
        -0,16
        - 0
        -0,016
        50 55 0
        -0,019
        - 0
        -0,019
        55 65 0
        -0,19
        - -
        65 80 0
        -0,19
        - -

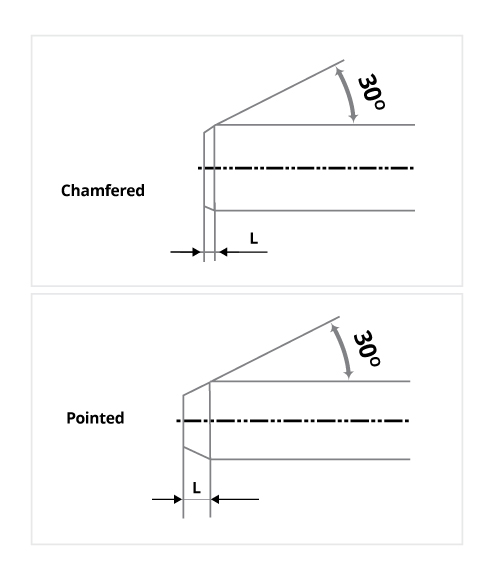

        Indicative Shaped Ends Dimensions
        Nominal Diameter or Width Across-flats Type A-Chamfer Length (L) Type B-Point Lenght (L)
        Over Up to and including Min Max Min Max
        5 10 0,2 1,5 2 7
        10 20 0,2 2 3 10
        20 30 0,2 3 4 12

        Unless otherwise specified by the buyer, the shape of the ends of products larger than 30 mm is up to the supplier.

        Over than 55 mm polygons and over than 65 mm round rods are produced without shaped ends

        Dimensions are in millimeters (mm)
      Product Image
