Extruded Rods
-
Ordering information for extruded rods is defined according to EN 12165 European Standart. This definition is as follows:
- Naming
- Forging stock
- Standard
- EN 12165
- Material Designation
-
Alloy Symbol or Number,
E.g. CuZn40Pb2 or CW617N
- Materials to be used in Drinking Water
- When specified as DW, production is carried out according to the restrictions on 4MS and UBA list
- Material Condition Designation
- The necessary mechanical properties if different than M,
E.g. Min hardness H080 for 80HBW
- Cross-sectional Shape
- E.g. RND for round, SQR for square, HEX for hexagonal, OCT for octagonal, RCT for rectangular (bar), PFL for profile
- Nominal Cross-sectional Dimension
- E.g. 30 for 30 mm
- Tolerances
- E.g. A or B
- For Profiles
- Technical drawing with tolerance

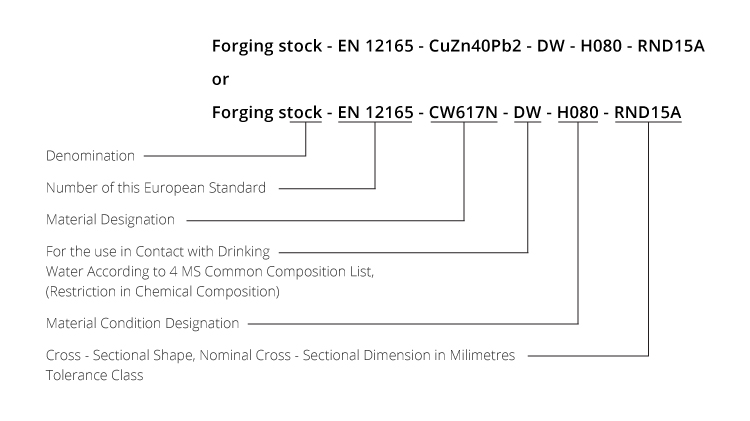

Forging stock conforming to this standart, in material designated either CuZn40Pb2 or CW617N, for drinking water applications according to 4MS Common Composition List, in material condition H080, round, nomial diameter 15 mm, tolarance Class A, shall be designated as follows:
The product designation provides a standardized pattern of designation of the main order information when combined with quantity, length / piece and weight tolerances. Additional order information may include; the test method, the type of packaging information and quality assurance certification.
Cold Drawn Rods
-
Ordering information for cold drawn rods is defined according to EN 12164 European Standart. This definition is as follows:
- Naming
- Rod
- Standard
- EN 12164
- Material Designation
-
Alloy Symbol or Number,
E.g. CuZn39Pb3 or CW614N
- Materials to be used in Drinking Water
- When specified as DW, production is carried out according to the restrictions on 4MS and UBA list
- Material Condition Designation
-
The necessary mechanical properties if different than M,
E.g. min Tensile strength 430 N/mm2 to R430
- Cross-sectional Shape
- E.g. RND for round, SQR for square, HEX for hexagonal, OCT for octagonal, RCT for rectangular (bar), PFL for profile
- Nominal Cross-sectional Dimension
- E.g. 30 for 30 mm
- Tolerances
- E.g. A, B or C
- Corner Type
- When necessary, E.g. SH - Sharp or RD - Rounded

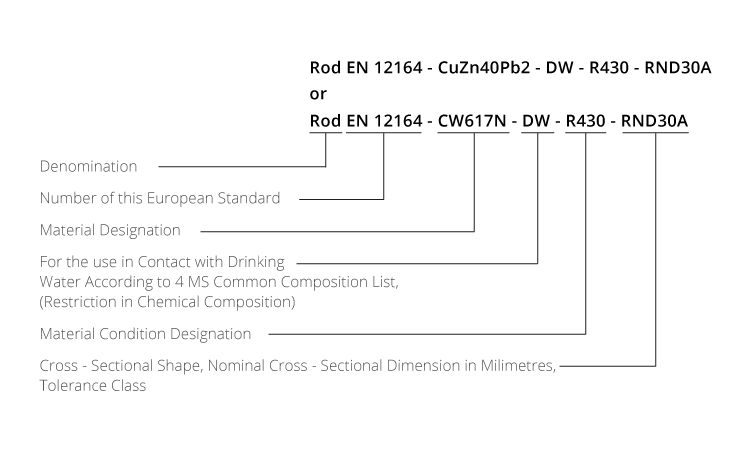

Rod for free machining purposes conforming to this standart, in material designated either CuZn40Pb2 or CW617N, for drinking water applications according to 4MS Common Composition List, in material condition R430, round cross-section, nomial diameter 30 mm, tolerance Class A, shall be designated as follows:
The product designation provides a standardized pattern of designation of the main order information when combined with quantity, length / piece and weight tolerances. Additional order information may include; the test method, the type of packaging information and quality assurance certification.
Profiles and Bars
-
Ordering information for profiles and bars is defined according to EN 12167 European Standart. This definition is as follows:
- Naming
- Profiles or Bars
- Standard
- EN 12167
- Material Designation
- Alloy Symbol or Number, E.g. CuZn40Pb2 or CW617N
- Materials to be used in Drinking Water
- When specified as DW, production is carried out according to the restrictions on 4MS and UBA list
- Material Condition Designation
- he necessary mechanical properties if different than M, E.g. Hardness value min. H110 for 110 HBW
- Nominal Cross-sectional Dimension
- The number of sections for profiles or detailed technical drawing with tolerances. Cross sectional dimensions (thickness x width) for rectangular section bars
- Tolerances
- Class A,B or C
- Corner Type
- When necessary, E.g. SH - Sharp or RD - Rounded

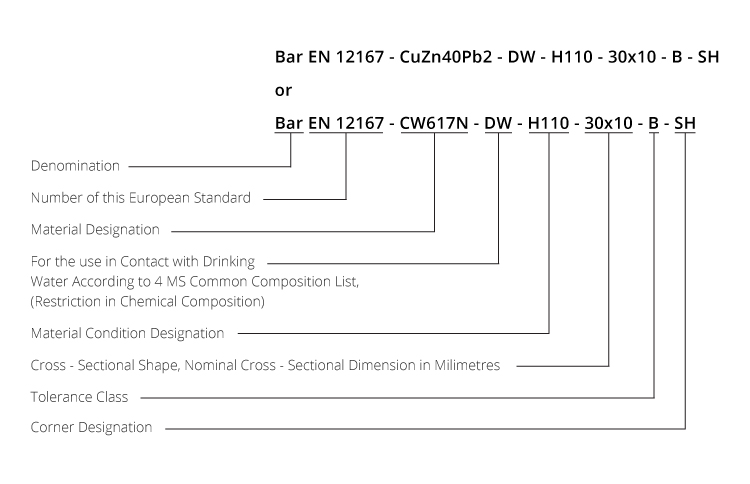

Bar conforming to this standard, in material designated either CuZn40Pb2 or CW617N for drinking water applications according to 4MS Common Composition List, in material condition H110, nomial cross-sectional dimensions 30 mm x 10 mm, tolarence Class B, with sharp corners, shall be designated as follows:
The product designation provides a standardized pattern of designation of the main order information when combined with quantity, length / piece and weight tolerances. Additional order information may include; the test method, the type of packaging information and quality assurance certification.
Hollow Rods
-
Ordering information for hollow rods is defined according to EN 12168 European Standart. This definition is as follows:
- Naming
- Hollow Rod
- Standard
- EN 12168
- Material Designation
-
Alloy Symbol or Number,
E.g. CuZn40Pb2 or CW617N
- Materials to be used in Drinking Water
- When specified as DW, production is carried out according to the restrictions on 4MS and UBA list
- Material Condition Designation
-
The necessary mechanical properties if different than M,
E.g. Hardness value min. H110 for 110 HBW
- Cross-sectional Shape
- E.g. RND for round, SQR for square, HEX for hexagonal, OCT for octagonal, RCT for rectangular (bar), PFL for profile
- Nominal Cross-sectional Dimension
- External dimension30 for 30 mm and internal dimension 20 for 20 mm
- Tolerances
-
External- Cold Drawn (Class B tolerance) x Internal-Extruded (Class A tolerance)
External- Cold Drawn (Class C tolerance) x Internal- Cold Drawn (Class B tolerance)
External- Extruded (Class A tolerance) x Internal- Extruded (Class A tolerance)
- Corner Type
- When necessary, E.g. SH - Sharp or RD - Rounded
- Eccentricity
- 10% (max)
Hollow rod for free machining purposes conforming to this standart, in material designated either CuZn40Pb2 or CW617N, for drinking water applications according to 4MS Common Composition List, in material condition H090, hexagonel external shape, 60 mm nominal width across-flats dimension, tolerance Class A, round bore of nomial diameter 20 mm, tolerance Class B sharp corners, shall be designated as follows:
The product designation provides a standardized pattern of designation of the main order information when combined with quantity, length / piece and weight tolerances. Additional order information may include; the test method, the type of packaging information and quality assurance certification.
Cold Drawn Coils
-
Ordering information for cold drawn coils defined according to EN 12166 European Standart. This definition is as follows:
- Naming
- Wire or Coil
- Standard
- EN 12166
- Material Designation
-
Alloy Symbol or Number,
E.g. CuZn40Pb2 or CW617N
- Materials to be used in Drinking Water
- Materials to be used in Drinking Water
- Material Condition Designation
-
The necessary mechanical properties if different than M,
E.g. Hardness value min. H115 for 115 HBW
- Cross-sectional Shape
- E.g. RND for round, SQR for square, HEX for hexagonal, OCT for octagonal, RCT for rectangular (bar), PFL for profile
- Nominal Cross-sectional Dimension
- E.g. For width x thickness (6.0 x 5.0)
- Tolerances
- Class A,B,C,D or E
- Corner Type
- When necessary, E.g. SH - Sharp or RD - Rounded
Material description CuZn40Pb2 or CW617N, material status H115, rectangular section, nominal measures of 6,0 mm x 5,0 mm class B tolerance, sharp corner; complying with the restrictions on the 4MS and UBA list for drinking water applications and with EN 12166 standard. Cold drawing coils with the properties above should be shown as follows.
The product designation provides a standardized pattern of designation of the main order information when combined with quantity, length / piece and weight tolerances. Additional order information may include; the test method, the type of packaging information and quality assurance certification.

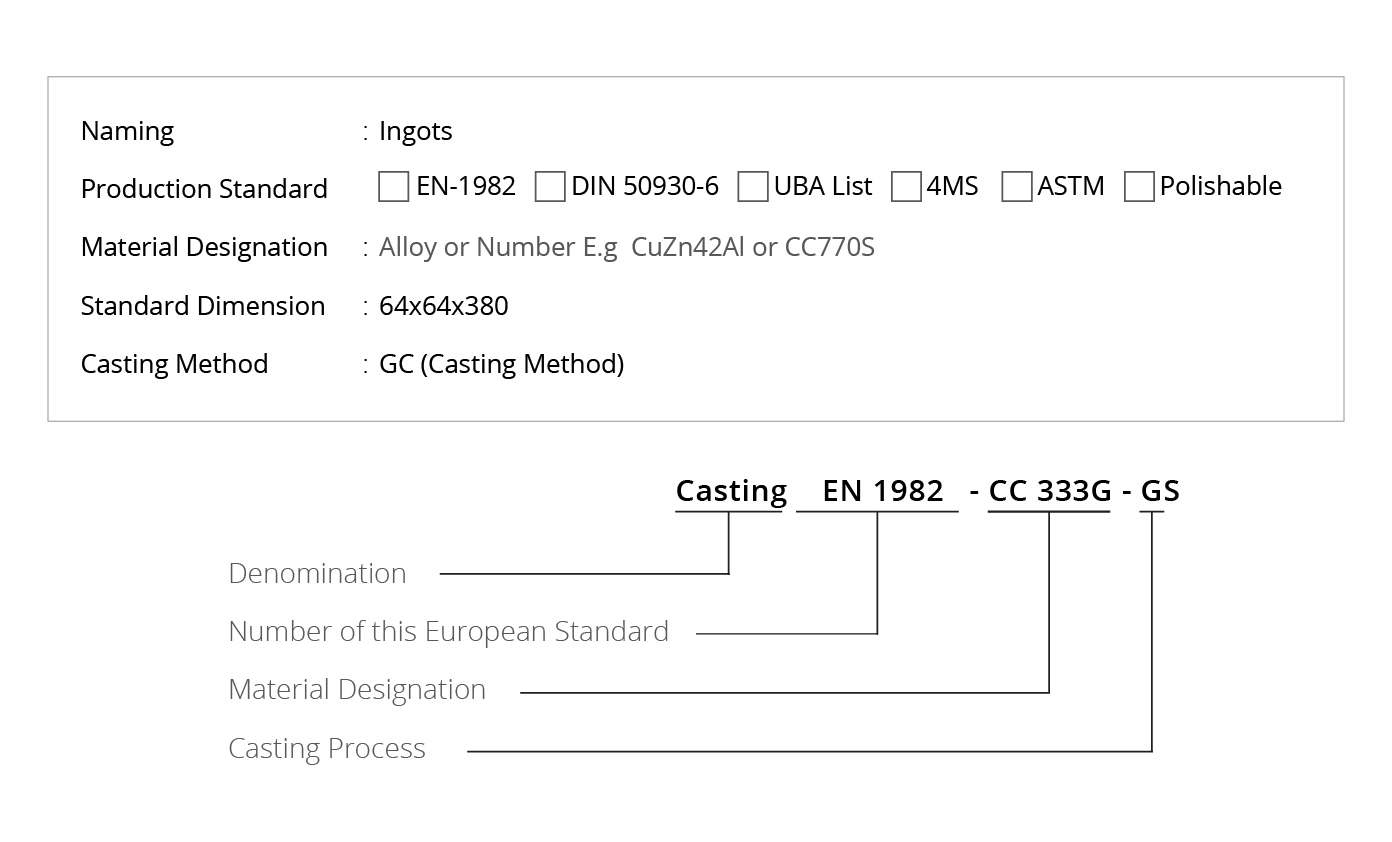

Ingots

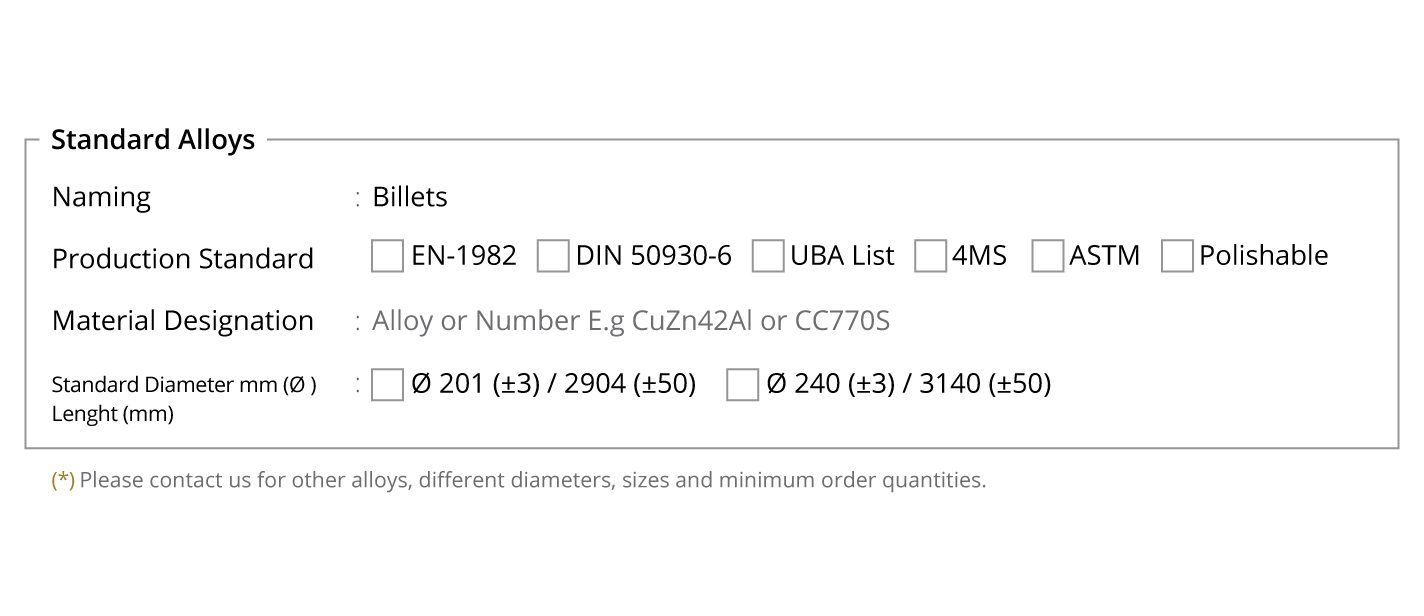

Billets
-
